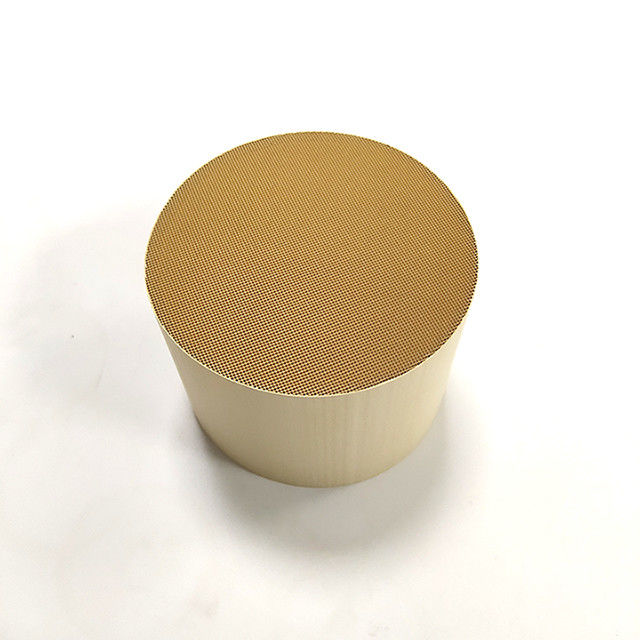

Ceramic Honeycomb Substrate for Catalytic Converters | Meets EURO 6/VI Emission Standards

Product Details

Place of Origin: Jiangsu-China

Brand Name: Grace

Certification: ISO9001/ISO14001

Model Number: G-70143

Payment & Shipping Terms

Minimum Order Quantity: 50 PCs

Price: $20/piece-$280/piece

Packaging Details: wooden box, Carton+Palletize

Delivery Time: 10-30days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10000PCs/per month

Get Best Price
Highlight:

Ceramic Honeycomb Catalytic Converter

,

Catalytic Converter Honeycomb Structure

,

Catalytic Converter Honeycomb Monolith EURO 6 VI

Product Name:
Honeycomb Catalyst
Material:
Cordierite
Size:
Customers' Requests
Color:
White/Yellow/Black
Shape:
Square/Round/Oval
Cell Density:
100/200/300/400/600cpsi
Feature:
Long Working Life, High Temperature Resistance
Emission Standard:
Euro 2/3/4/5/6 , EuroⅡ/Ⅲ/Ⅳ/Ⅴ/Ⅵ
Product Name:
Honeycomb Catalyst
Material:
Cordierite
Size:
Customers' Requests
Color:
White/Yellow/Black
Shape:
Square/Round/Oval
Cell Density:
100/200/300/400/600cpsi
Feature:
Long Working Life, High Temperature Resistance
Emission Standard:
Euro 2/3/4/5/6 , EuroⅡ/Ⅲ/Ⅳ/Ⅴ/Ⅵ
Ceramic Honeycomb Substrate for Catalytic Converters | Meets EURO 6/VI Emission Standards

EURO 6 Honeycomb Ceramic Catalyst Passenger Car





Product Description



Emission Aftertreatment System Upgrade Requirements
Modern vehicle exhaust aftertreatment systems comprise advanced technologies installed downstream of the combustion engine to significantly reduce harmful emissions. These systems integrate multiple components:
Core Aftertreatment Technologies


• TWC (Three-Way Catalyst): Simultaneously reduces NOx, CO, and HC in gasoline engines
• SCR (Selective Catalytic Reduction): Targets NOx reduction in diesel applications
• DOC (Diesel Oxidation Catalyst): Converts CO and HC into CO₂ and H₂O
• DPF/GPF (Diesel/Gasoline Particulate Filter): Captures 99% of soot particles
• ASC (Ammonia Slip Catalyst): Prevents NH₃ leakage from SCR systems


Catalytic Conversion Process


When exhaust gases (containing NOx, CO, and HC) flow through the catalytic converter:
1. Redox Reactions occur on the catalyst surface
2. Toxic compounds transform into environmentally safe outputs:
◦ Nitrogen oxides (NOx) → Nitrogen (N₂) + Oxygen (O₂)
◦ Carbon monoxide (CO) → Carbon dioxide (CO₂)
◦ Hydrocarbons (HC) → Water (H₂O) + CO₂


System Upgrade Drivers
✔ Stricter emission standards (Euro 6d/China VI/EPA Tier 3)
✔ Improved catalyst formulations (Pd/Rh-based TWCs, Cu/Zeolite SCR)
✔ Advanced filter technologies (SiC DPFs, asymmetric-cell GPFs)

2.Chemical Composition:



Chemical Composition

Alumina Ceramic

Mullite

Cordierite

Cordierite porous

Quartz

porous

dense

Porcelain

SiO2

41-44

26-29

59-59

48-52

65-68

Al2O3

50-53

67-70

24-27

34-37

25-30

MgO

≤0.4

≤0.4

7-8

8-9

≤0.5

Alkali

≤4

≤1.3

≤3

≤1.3

≤5


3 .Geometric data:

Size

150×150×300mm

150×150×300mm

150×150×300mm

150×150×300mm

Channels

25 x 25

40 x 40

50 x 50

60 x 60

Channel width

4.9mm

3.0mm

2.4mm

2.0mm

Inner walls

1.0mm

0.7mm

0.6mm

0.45mm

Spec area

540m²/m³

825m²/m³

1050m²/m³

1310m²/m³

Void

67%

64%

63%

64%


4.Physical Data


Materials

Units

Alumina ceramic

Mullite

Cordierite

Cordierite porous

Quartz







porous

dense

porcelain

Density

g/cm3

2.7

2.1

2.5

1.9

2.3-2.5

Bulk Density

Kg/m3

965

832

871

778

889

Thermal Expansion Coefficient

10-6 /°C

6,2

3,5

3,4

6,2

4,8

Specific heat Capacity

J/KgK

992

998

942

1016

897

Thermal Conductivity

W/mK

2.79

2.42

1.89

1.63

1.37

Resistance to Fluctuated Temp

Max K

500

550

500

600

500

Softening Temperature

°C

1500

1580

1320

1400

1380

Max. temperature

°C

1400

1480

1200

1300

1280

Average Thermal Capacity

KWh/m3K

0.266

0.231

0.228

0.219

0.222

Porosity Ratio

%

0.8

26

0.4

15

0.6

Acid Resistance

%

0.2

2.5

5

16.7

0.3


All the data is only for reference, specific sizes and hole shapes are according to customers' requirements.
