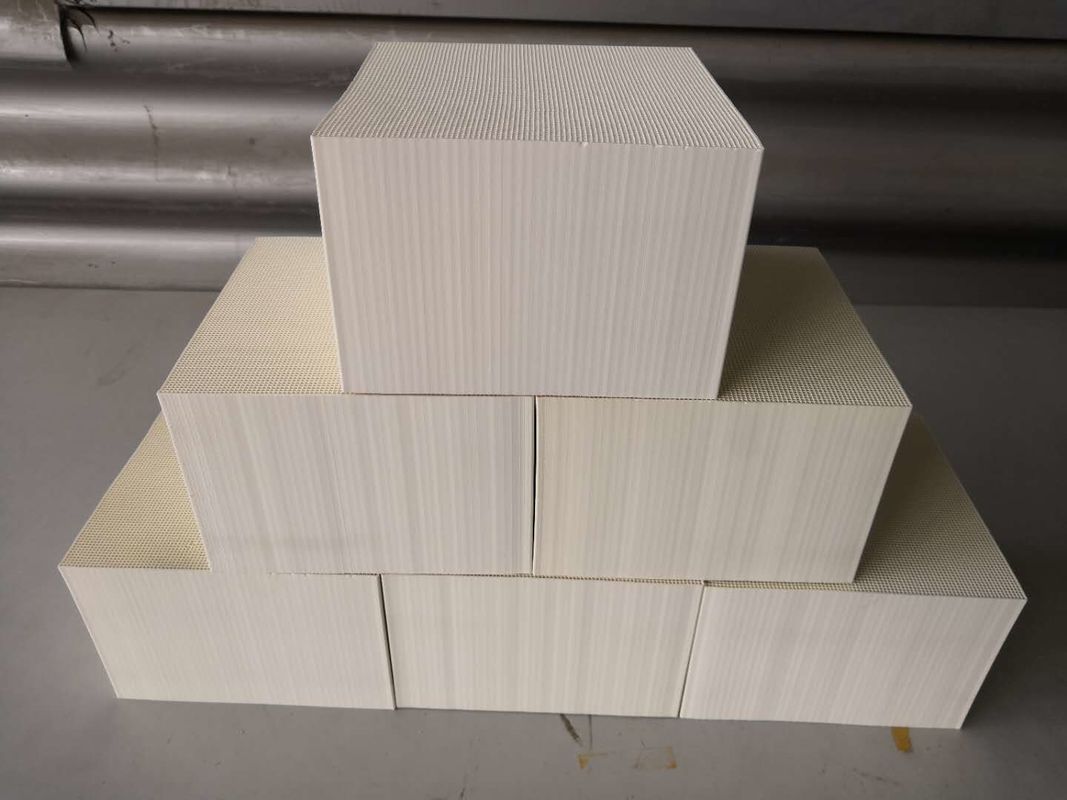

Euro 4 5 6 Monolithic Honeycomb Catalyst Substrate Support Manufacturing

Product Details

Place of Origin: Jiangsu-China

Brand Name: Grace

Certification: ISO9001/ISO14001

Model Number: G-70014

Payment & Shipping Terms

Minimum Order Quantity: 50 PCs

Price: $20/piece-$280/piece

Packaging Details: wooden box, Carton+Palletize

Delivery Time: 10-30days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 10000PCs/per month

Get Best Price
High Light:

Euro 4 5 6 Monolithic Honeycomb Catalyst

,

Euro 4 5 6 Monolithic Honeycomb Catalyst Manufacturing

,

Honeycomb In Catalytic Converter

Product Name:
Honeycomb Catalyst
Material:
Cordierite
Size:
Customers' Requests
Color:
White/Yellow/Black
Shape:
Square/Round/Oval
Cell Density:
100/200/300/400/600cpsi
Feature:
Long Working Life, High Temperature Resistance
Emission Standard:
Euro 2/3/4/5/6 , EuroⅡ/Ⅲ/Ⅳ/Ⅴ/Ⅵ
Product Name:
Honeycomb Catalyst
Material:
Cordierite
Size:
Customers' Requests
Color:
White/Yellow/Black
Shape:
Square/Round/Oval
Cell Density:
100/200/300/400/600cpsi
Feature:
Long Working Life, High Temperature Resistance
Emission Standard:
Euro 2/3/4/5/6 , EuroⅡ/Ⅲ/Ⅳ/Ⅴ/Ⅵ
Euro 4 5 6 Monolithic Honeycomb Catalyst Substrate Support Manufacturing

Euro 4/5/6 Cordierite Ceramic Honeycomb Catalyst For Combustion Furnace And Power Plant



Product Description



1. GRACE pottery general specifications





Diameter ø

inch

H1

H2

H3

H4

H5

H6

H7

H8

H9

H10

H11

1#

80

3.15

60

80



















2#

83

3.27

60

80

95

125















3#

93

3.66

60

75

76.2

88.3

90

93

101.6

130

147.5

152.4



4#

101.6

4.00

60

62

68

75

76.2

80

90

101.6

123.3

136

152.4

5#

103

4.06

100

130



















6#

105.7

4.16

100

110

115

130

147.5

152.4











7#

118.4

4.66

50

60

63.5

70

76.2

90

100

101.6

120

127

152.4

8#

143.8

5.66

75

76.2

101.6

152.4















9#

165.1

6.50

139.7





















10#

170

6.69

100























Ellipse

inch

H1

H2

H3

H4

H5

H6

H7

H8

H9

H10

H11

11#

120.65x80.01

3.15x4.75"

50

75

100

120

152.4













12#

144.3x68.1

5.68x2.68"

76.2

101.6

152.4

















13#

144x68

There is no such specification.

100

125



















14#

147x95

5.79x3.74"

40

50

100

127

152.4













15#

144.8x81.3

5.7x3.2"

50

76.5

101.6

152.4















16#

169.7x80.8

6.68x3.18"

101.6

127

152.4













































Remark: The size is not complete, it is only routine.




2.Chemical Composition:



Chemical Composition

Alumina Ceramic

Mullite

Cordierite

Cordierite porous

Quartz

porous

dense

Porcelain

SiO2

41-44

26-29

59-59

48-52

65-68

Al2O3

50-53

67-70

24-27

34-37

25-30

MgO

≤0.4

≤0.4

7-8

8-9

≤0.5

Alkali

≤4

≤1.3

≤3

≤1.3

≤5


3 .Geometric data:

Size

150×150×300mm

150×150×300mm

150×150×300mm

150×150×300mm

Channels

25 x 25

40 x 40

50 x 50

60 x 60

Chanel width

4.9mm

3.0mm

2.4mm

2.0mm

Inner walls

1.0mm

0.7mm

0.6mm

0.45mm

Spec area

540m²/m³

825m²/m³

1050m²/m³

1310m²/m³

Void

67%

64%

63%

64%


4.Physical Data


Materials

Units

Alumina ceramic

Mullite

Cordierite

Cordierite porous

Quartz







porous

dense

porcelain

Density

g/cm3

2.7

2.1

2.5

1.9

2.3-2.5

Bulk Density

Kg/m3

965

832

871

778

889

Thermal Expansion Coefficient

10-6 /°C

6,2

3,5

3,4

6,2

4,8

Specific heat Capacity

J/KgK

992

998

942

1016

897

Thermal Conductivity

W/mK

2.79

2.42

1.89

1.63

1.37

Resistance to Fluctuated Temp

Max K

500

550

500

600

500

Softening Temperature

°C

1500

1580

1320

1400

1380

Max. temperature

°C

1400

1480

1200

1300

1280

Average Thermal Capacity

KWh/m3K

0.266

0.231

0.228

0.219

0.222

Porosity Ratio

%

0.8

26

0.4

15

0.6

Acid Resistance

%

0.2

2.5

5

16.7

0.3


All the data is only for reference, specific sizes and hole shapes are according to customers' requirements.
