Product Details
Place of Origin: Jiangsu-China
Brand Name: Grace
Certification: ISO9001/ISO14001
Model Number: G-70133
Payment & Shipping Terms
Minimum Order Quantity: 50 PCs
Price: $20/piece-$100/piece
Packaging Details: wooden box, Carton+Palletize
Delivery Time: 10-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Type: |
VOC Catalyst |
Material: |
Cordierite |
Color: |
White/little Yellow,/Black |
Size: |
Customers' Requests |
Shape: |
Square/Round/Oval |
Application: |
Industrial Installations. |
Product Name: |
VOC Catalyst |
Package: |
Wooden Box, Carton+Palletize |
Sample: |
Available |
Cell Density: |
100/200/300/400/600cpsi |
Main Material: |
2MgO 2Al2O3 5SiO2 |
Shipping Type: |
By DHL, Fedex, Sea, Air |
Feature: |
Long Working Life, High Temperature Resistance |
Content: |
95%-99.8% |
Type: |
VOC Catalyst |
Material: |
Cordierite |
Color: |
White/little Yellow,/Black |
Size: |
Customers' Requests |
Shape: |
Square/Round/Oval |
Application: |
Industrial Installations. |
Product Name: |
VOC Catalyst |
Package: |
Wooden Box, Carton+Palletize |
Sample: |
Available |
Cell Density: |
100/200/300/400/600cpsi |
Main Material: |
2MgO 2Al2O3 5SiO2 |
Shipping Type: |
By DHL, Fedex, Sea, Air |
Feature: |
Long Working Life, High Temperature Resistance |
Content: |
95%-99.8% |

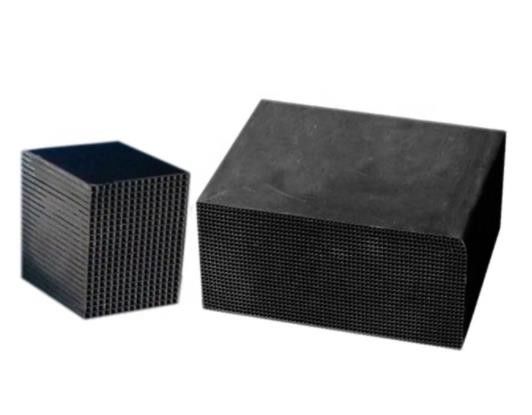

Catalytic Oxidizer For Catalytic Incinerator To Purify VOCs Pollutants
Product Description
1. Introuduction
The design of catalyst incinerator depends on the exhaust air volume, VOCs concentration and the required destruction removal efficiency. During operation, the waste gas containing VOCs is introduced into the heat exchanger in the system by the system fan. After being heated by the Tubeside of the heat exchanger, the waste gas passes through the burner. At this time, the waste gas has been heated to the catalytic decomposition temperature, and then passes through the catalyst bed. The catalytic decomposition will release heat energy, and VOCs will be decomposed into carbon dioxide and water vapor. After that, the hot and purified gas enters the shellside of the heat exchanger to heat the untreated VOC waste gas on the tubeside, which will reduce the energy consumption. Finally, the purified gas is discharged to the atmosphere from the chimney.
The design of direct-fired incinerator depends on the exhaust air volume, VOCs concentration and the required destruction removal efficiency. During operation, the waste gas containing VOCs is introduced into the heat exchanger in the system by the system fan. After being heated by the Tubeside of the heat exchanger, the waste gas passes through the burner. At this time, the waste gas has been heated to the catalytic decomposition temperature (650~1000℃) and has enough retention time (0.5~2.0 seconds). At this time, a thermal reaction will occur, and VOCs will be decomposed into carbon dioxide and water vapor. After that, this hot and purified gas enters the shellside of the heat exchanger to heat the untreated VOC waste gas on the tubeside. This heat exchanger can reduce the energy consumption (even if the concentration of VOCs is above a certain appropriate level, no extra fuel is needed). Finally, the purified gas is discharged into the atmosphere from the chimney.
2..GRACE general specifications
| Length | Width | Height | Cell density(CPSI) |
| 150 | 150 | 50 | 46,100,200,300,400 |
| 150 | 150 | 75 | |
| 150 | 150 | 100 | |
| 150 | 150 | 200 | |
| 150 | 150 | 300 | |
| 150 | 150 | 400 |
Company Information
Grace Environmental Protection Technology Co., Ltd. is a technical enterprise specialized in various types of exhaust gas treatment. The team has rich internal combustion engine exhaust gas and VOC treatment experience and more than ten years of working experience, and is a very few suppliers with the ability to design the whole process from catalyst to overall solution. At present, the products cover all kinds of exhaust catalysts, DOC,CDPF,SCR,ASC, etc. At the same time, they cover waste liquid treatment and indoor air purification, providing customers with the most competitive products and services. At present, the company has passed the certification of ISO14001 environmental management system, ISO9001 international quality certification, AAA enterprise credit rating and other certifications, and has an annual output of 500,000 litres of catalyst production coating line, complete quality management system and process control. Various performance testing capabilities, including SRD,SRF,ICP,BET, etc.!
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons Or wooden cases and foam. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CRF, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Video
