Product Details
Place of Origin: Jiangsu-China
Brand Name: Grace
Certification: ISO9001/ISO14001
Model Number: G-7065
Payment & Shipping Terms
Minimum Order Quantity: 50 PCs
Price: $20/piece-$100/piece
Packaging Details: wooden box, Carton+Palletize
Delivery Time: 10-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Type: |
Diesel Oxidation Catalyst |
Material: |
Cordierite/Silicon Carbide/Metal |
Color: |
White/little Yellow,/Black |
Size: |
Customers' Requests |
Shape: |
Square/Round/Oval |
Application: |
All On-road & Off-road Vehicles, Machineries, And Industrial Installations. |
Product Name: |
DOC Catalyst |
Package: |
Wooden Box, Carton+Palletize |
Sample: |
Available |
Cell Density: |
100/200/300/400/600cpsi |
Main Material: |
2MgO 2Al2O3 5SiO2 |
Shipping Type: |
By DHL, Fedex, Sea, Air |
Feature: |
Long Working Life, High Temperature Resistance |
Content: |
95%-99.8% |
Emission Standard: |
Euro 2/3/4/5/6 , EuroⅡ/Ⅲ/Ⅳ/Ⅴ/Ⅵ |
Type: |
Diesel Oxidation Catalyst |
Material: |
Cordierite/Silicon Carbide/Metal |
Color: |
White/little Yellow,/Black |
Size: |
Customers' Requests |
Shape: |
Square/Round/Oval |
Application: |
All On-road & Off-road Vehicles, Machineries, And Industrial Installations. |
Product Name: |
DOC Catalyst |
Package: |
Wooden Box, Carton+Palletize |
Sample: |
Available |
Cell Density: |
100/200/300/400/600cpsi |
Main Material: |
2MgO 2Al2O3 5SiO2 |
Shipping Type: |
By DHL, Fedex, Sea, Air |
Feature: |
Long Working Life, High Temperature Resistance |
Content: |
95%-99.8% |
Emission Standard: |
Euro 2/3/4/5/6 , EuroⅡ/Ⅲ/Ⅳ/Ⅴ/Ⅵ |

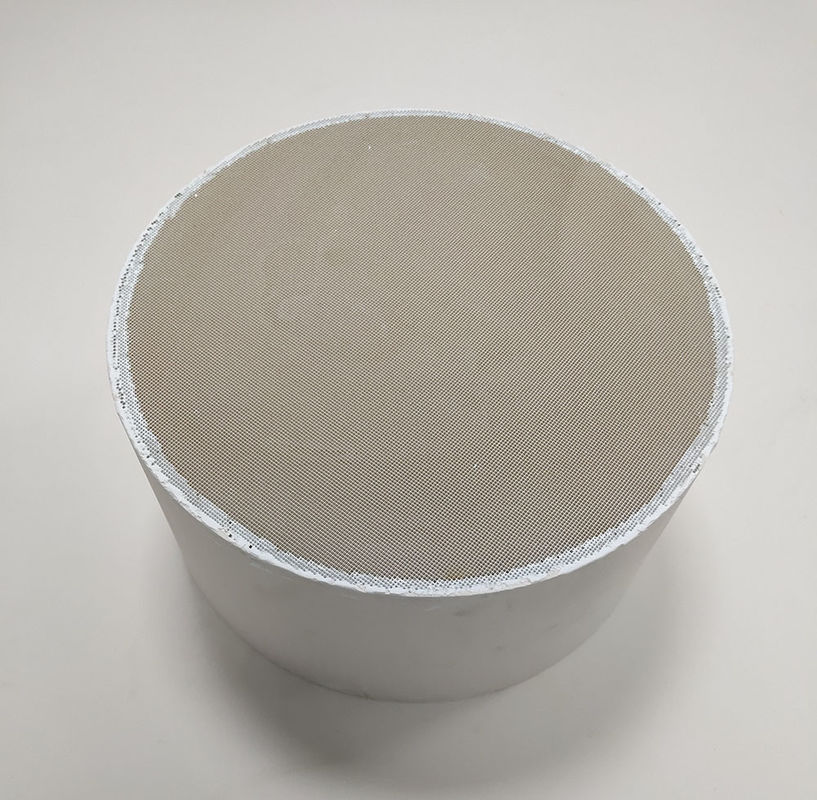

Euro 4 DOC Catalyst Honeycomb Ceramic For Diesel Exhaust
Product Description
Product Features
Oxidation catalyst (DOC) for diesel engine has good oxidation performance, low light-off temperature for HC, CO and SOF, high conversion efficiency, and inhibition of sulfate formation.
Mainly divided into two series:
Matching with POC/DPF: it can provide oxidation temperature of particulate matter (PM) to help its regeneration. Matching with SCR: oxidizing NO into NOz, and improving the conversion efficiency of SCR to NOx.
2. GRACE general specifications
| Diameter ø | inch | H1 | H2 | H3 | H4 | H5 | H6 | H7 | H8 | H9 | H10 | H11 | |
| 1# | 80 | 3.15 | 60 | 80 | |||||||||
| 2# | 83 | 3.27 | 60 | 80 | 95 | 125 | |||||||
| 3# | 93 | 3.66 | 60 | 75 | 76.2 | 88.3 | 90 | 93 | 101.6 | 130 | 147.5 | 152.4 | |
| 4# | 101.6 | 4.00 | 60 | 62 | 68 | 75 | 76.2 | 80 | 90 | 101.6 | 123.3 | 136 | 152.4 |
| 5# | 103 | 4.06 | 100 | 130 | |||||||||
| 6# | 105.7 | 4.16 | 100 | 110 | 115 | 130 | 147.5 | 152.4 | |||||
| 7# | 118.4 | 4.66 | 50 | 60 | 63.5 | 70 | 76.2 | 90 | 100 | 101.6 | 120 | 127 | 152.4 |
| 8# | 143.8 | 5.66 | 75 | 76.2 | 101.6 | 152.4 | |||||||
| 9# | 165.1 | 6.50 | 139.7 | ||||||||||
| 10# | 170 | 6.69 | 100 | ||||||||||
| Ellipse | inch | H1 | H2 | H3 | H4 | H5 | H6 | H7 | H8 | H9 | H10 | H11 | |
| 11# | 120.65x80.01 | 3.15x4.75" | 50 | 75 | 100 | 120 | 152.4 | ||||||
| 12# | 144.3x68.1 | 5.68x2.68" | 76.2 | 101.6 | 152.4 | ||||||||
| 13# | 144x68 | There is no such specification. | 100 | 125 | |||||||||
| 14# | 147x95 | 5.79x3.74" | 40 | 50 | 100 | 127 | 152.4 | ||||||
| 15# | 144.8x81.3 | 5.7x3.2" | 50 | 76.5 | 101.6 | 152.4 | |||||||
| 16# | 169.7x80.8 | 6.68x3.18" | 101.6 | 127 | 152.4 |
Company Information
Grace Environmental Protection Technology Co., Ltd. is a technical enterprise specialized in various types of exhaust gas treatment. The team has rich internal combustion engine exhaust gas and VOC treatment experience and more than ten years of working experience, and is a very few suppliers with the ability to design the whole process from catalyst to overall solution. At present, the products cover all kinds of exhaust catalysts, DOC,CDPF,SCR,ASC, etc. At the same time, they cover waste liquid treatment and indoor air purification, providing customers with the most competitive products and services. At present, the company has passed the certification of ISO14001 environmental management system, ISO9001 international quality certification, AAA enterprise credit rating and other certifications, and has an annual output of 500,000 litres of catalyst production coating line, complete quality management system and process control. Various performance testing capabilities, including SRD,SRF,ICP,BET, etc.!
