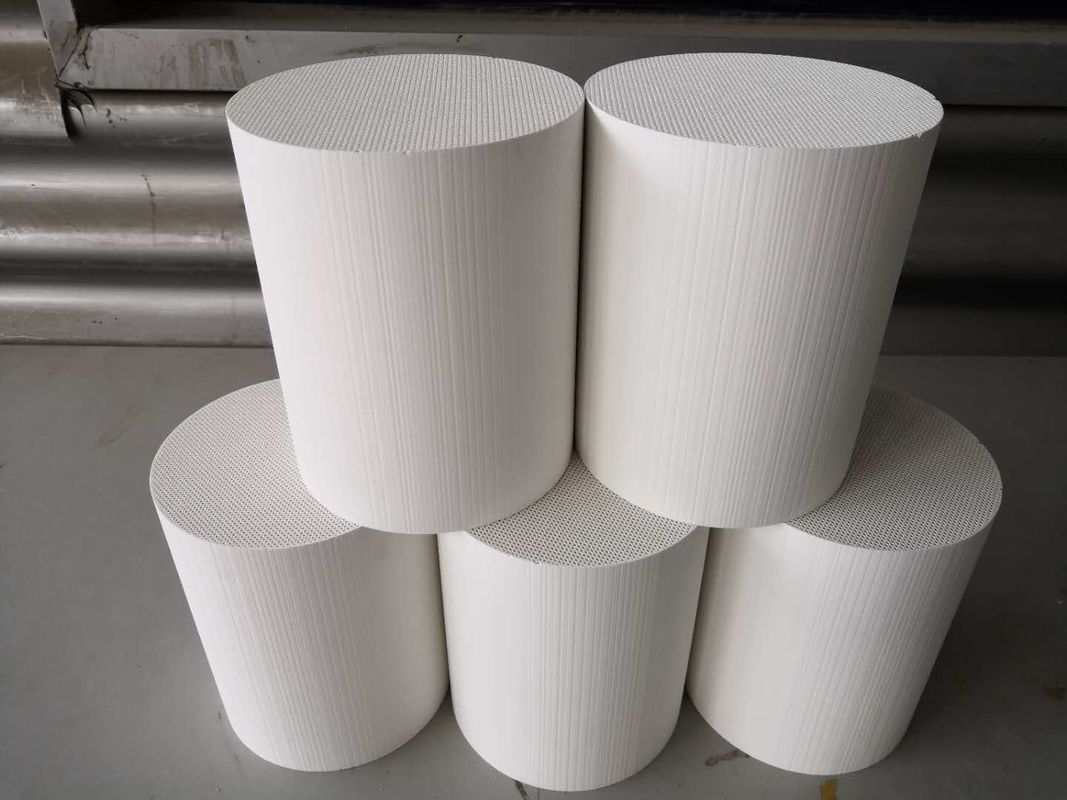

200cpsi Automobile Catalyst Exhaust Control Dpf On Petrol Cars Passenger

Place of Origin Jiangsu-China
Brand Name Grace
Certification ISO9001/ISO14001
Model Number G-70013
Minimum Order Quantity 50 PCs
Price $20/piece-$280/piece
Packaging Details wooden box, Carton+Palletize
Delivery Time 10-30days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000PCs/per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Cordierite/Silicon Carbide Type Special For Gasoline Vehicles
Size Customers' Requests Color White/Yellow/Black
Shape Square/Round/Oval Product Name Gasoline Particulate Filter
Cell Density 100/200/300/400/600cpsi Feature Long Working Life, High Temperature Resistance
Emission Standard Euro 2/3/4/5/6 , EuroⅡ/Ⅲ/Ⅳ/Ⅴ/Ⅵ
High Light

200cpsi Automobile Catalyst Exhaust Control Dpf

,

200cpsi Automobile Exhaust Control Catalyst

,

Automobile Emissions Catalysts 200cpi

Leave a Message
Product Description

GPF Catalyst Gasoline Particulate Filter For Passenger Car Commercial Vehicle



Product Description


1. Introuduction


The main material of the gasoline particulate filter (GPF) is the cordierite, combined with the innovative ceramic microstructures, is designed for the capture of fine particles, while reducing the back pressure of the engine to maintain its performance.

The gasoline particulate filter (GPF) is designed for gasoline direct injection (GDI) engines to reduce particulate emissions, can meet the Euro 6c emissions standard for gasoline vehicles. The GDI engines help improve fuel economy and therefore reduce CO2 emissions; but they have higher particulate emissions compared to multiport fuel injection engines.

Gasoline particulate filter (GPF) use the same type of wall-flow substrates as diesel particulate filters and can be included in the exhaust system in addition to the series three-way catalyst or the catalyst coating can be directly applied to the filter substrate to form a four-way catalyst.

The above standards could also be met—at least in certain types of vehicles—via in-cylinder controls such as fuel injection strategies, without particulate filters. However, the GPF has several advantages compared to in-cylinder controls:

  • Effectiveness under all operating conditions—While in-cylinder strategies tend to be more effective under certain modes of operation, the GPF provides PN emission control under all engine operating conditions—an advantage that is especially important in RDE testing.
  • Control of emissions from engine faults—Increased PN emissions can occur as a result of engine faults and malfunction, such as increased lube oil consumption. These emissions can be effectively controlled by particulate filters
  • Control of unregulated emissions—The GPF can control certain unregulated emissions, including polynuclear aromatic hydrocarbons (PAH). GDI engines, even though equipped with three-way catalysts (TWC), may produce significant levels of toxic PAH emissions .​



2. GRACE pottery general specifications



  Diameter ø inch H1 H2 H3 H4 H5 H6 H7 H8 H9 H10 H11
1# 80 3.15 60 80
2# 83 3.27 60 80 95 125
3# 93 3.66 60 75 76.2 88.3 90 93 101.6 130 147.5 152.4
4# 101.6 4.00 60 62 68 75 76.2 80 90 101.6 123.3 136 152.4
5# 103 4.06 100 130
6# 105.7 4.16 100 110 115 130 147.5 152.4
7# 118.4 4.66 50 60 63.5 70 76.2 90 100 101.6 120 127 152.4
8# 143.8 5.66 75 76.2 101.6 152.4
9# 165.1 6.50 139.7
10# 170 6.69 100
  Ellipse inch H1 H2 H3 H4 H5 H6 H7 H8 H9 H10 H11
11# 120.65x80.01 3.15x4.75" 50 75 100 120 152.4
12# 144.3x68.1 5.68x2.68" 76.2 101.6 152.4
13# 144x68 There is no such specification. 100 125
14# 147x95 5.79x3.74" 40 50 100 127 152.4
15# 144.8x81.3 5.7x3.2" 50 76.5 101.6 152.4
16# 169.7x80.8 6.68x3.18" 101.6 127 152.4


Remark: The size is not complete, it is only routine.



Company Information



Grace Environmental Protection Technology Co., Ltd. is a technical enterprise specialized in various types of exhaust gas treatment. The team has rich internal combustion engine exhaust gas and VOC treatment experience and more than ten years of working experience, and is a very few suppliers with the ability to design the whole process from catalyst to overall solution. At present, the products cover all kinds of exhaust catalysts, DOC,CDPF,SCR,ASC, etc. At the same time, they cover waste liquid treatment and indoor air purification, providing customers with the most competitive products and services. At present, the company has passed the certification of ISO14001 environmental management system, ISO9001 international quality certification, AAA enterprise credit rating and other certifications, and has an annual output of 500,000 litres of catalyst production coating line, complete quality management system and process control. Various performance testing capabilities, including SRD,SRF,ICP,BET, etc.!

200cpsi Automobile Catalyst Exhaust Control Dpf On Petrol Cars Passenger 0



Packaging & Shipping



200cpsi Automobile Catalyst Exhaust Control Dpf On Petrol Cars Passenger 1

200cpsi Automobile Catalyst Exhaust Control Dpf On Petrol Cars Passenger 2







Certifications

200cpsi Automobile Catalyst Exhaust Control Dpf On Petrol Cars Passenger 3





FAQ



Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons Or wooden cases and foam. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CRF, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
