Product Details
Place of Origin: Jiangsu-China
Brand Name: Grace
Certification: ISO9001/ISO14001
Model Number: G-70155
Payment & Shipping Terms
Minimum Order Quantity: 50 PCs
Price: $20/piece-$100/piece
Packaging Details: wooden box, Carton+Palletize
Delivery Time: 10-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Type: |
SCR Catalyst |
Material: |
Cordierite |
Color: |
White |
Size: |
Customers' Requests |
Application: |
All On-road & Off-road Vehicles, Machineries, And Industrial Installations. |
Product Name: |
SCR Catalyst |
Package: |
Wooden Box, Carton+Palletize |
Sample: |
Available |
Cell Density: |
100/200/300/400/600cpsi |
Main Material: |
2MgO 2Al2O3 5SiO2 |
Shipping Type: |
By DHL, Fedex, Sea, Air |
Feature: |
Long Working Life, High Temperature Resistance |
Content: |
95%-99.8% |
Shape: |
Square/Round/Oval |
Type: |
SCR Catalyst |
Material: |
Cordierite |
Color: |
White |
Size: |
Customers' Requests |
Application: |
All On-road & Off-road Vehicles, Machineries, And Industrial Installations. |
Product Name: |
SCR Catalyst |
Package: |
Wooden Box, Carton+Palletize |
Sample: |
Available |
Cell Density: |
100/200/300/400/600cpsi |
Main Material: |
2MgO 2Al2O3 5SiO2 |
Shipping Type: |
By DHL, Fedex, Sea, Air |
Feature: |
Long Working Life, High Temperature Resistance |
Content: |
95%-99.8% |
Shape: |
Square/Round/Oval |

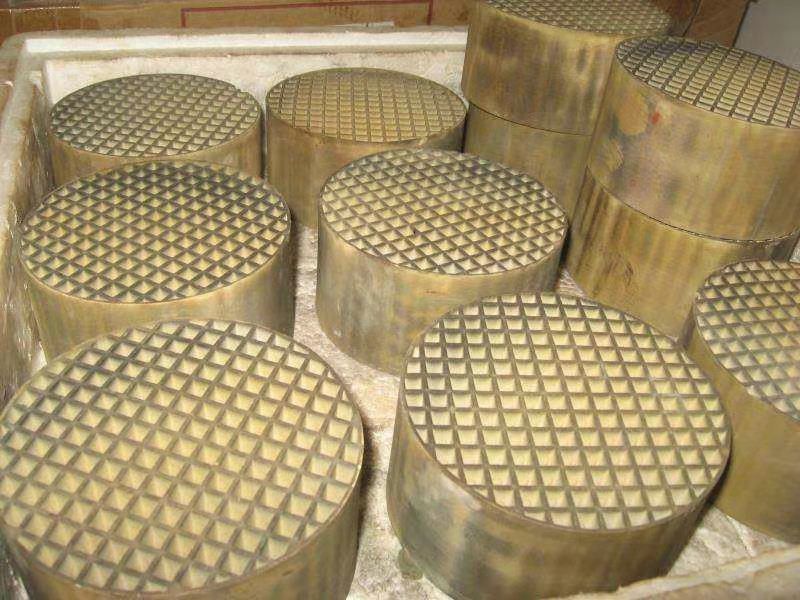

OC Catalyst For Honeycomb Ceramic Wood Furnace Purify Indoor Air Reduce Black Smoke
Product Description
1. Introuduction
It is difficult to burn firewood completely directly, and it is easy to produce smoke and gas. There are two kinds of wood stoves, catalytic and non-catalytic. Catalysts are more expensive. Small wood stoves are generally non-catalytic and large wood stoves are generally catalytic. The catalytic oxidizer has the same catalytic principle as that used in automobiles, which reduces the ignition point by using precious metal catalysts, so that the incompletely burned gas and smoke in the flue gas are burned under the catalytic action.
2. GRACE general specifications
| Diameter ø | inch | H1 | H2 | H3 | H4 | H5 | H6 | H7 | H8 | H9 | H10 | H11 | |
| 1# | 80 | 3.15 | 60 | 80 | |||||||||
| 2# | 83 | 3.27 | 60 | 80 | 95 | 125 | |||||||
| 3# | 93 | 3.66 | 60 | 75 | 76.2 | 88.3 | 90 | 93 | 101.6 | 130 | 147.5 | 152.4 | |
| 4# | 101.6 | 4.00 | 60 | 62 | 68 | 75 | 76.2 | 80 | 90 | 101.6 | 123.3 | 136 | 152.4 |
| 5# | 103 | 4.06 | 100 | 130 | |||||||||
| 6# | 105.7 | 4.16 | 100 | 110 | 115 | 130 | 147.5 | 152.4 | |||||
| 7# | 118.4 | 4.66 | 50 | 60 | 63.5 | 70 | 76.2 | 90 | 100 | 101.6 | 120 | 127 | 152.4 |
| 8# | 143.8 | 5.66 | 75 | 76.2 | 101.6 | 152.4 | |||||||
| 9# | 165.1 | 6.50 | 139.7 | ||||||||||
| 10# | 170 | 6.69 | 100 | ||||||||||
| Ellipse | inch | H1 | H2 | H3 | H4 | H5 | H6 | H7 | H8 | H9 | H10 | H11 | |
| 11# | 120.65x80.01 | 3.15x4.75" | 50 | 75 | 100 | 120 | 152.4 | ||||||
| 12# | 144.3x68.1 | 5.68x2.68" | 76.2 | 101.6 | 152.4 | ||||||||
| 13# | 144x68 | There is no such specification. | 100 | 125 | |||||||||
| 14# | 147x95 | 5.79x3.74" | 40 | 50 | 100 | 127 | 152.4 | ||||||
| 15# | 144.8x81.3 | 5.7x3.2" | 50 | 76.5 | 101.6 | 152.4 | |||||||
| 16# | 169.7x80.8 | 6.68x3.18" | 101.6 | 127 | 152.4 |
| Length | Width | Height | Cell density(CPSI) |
| 150 | 150 | 50 | 46,100,200,300,400 |
| 150 | 150 | 75 | |
| 150 | 150 | 100 | |
| 150 | 150 | 200 | |
| 150 | 150 | 300 | |
| 150 | 150 | 400 |
